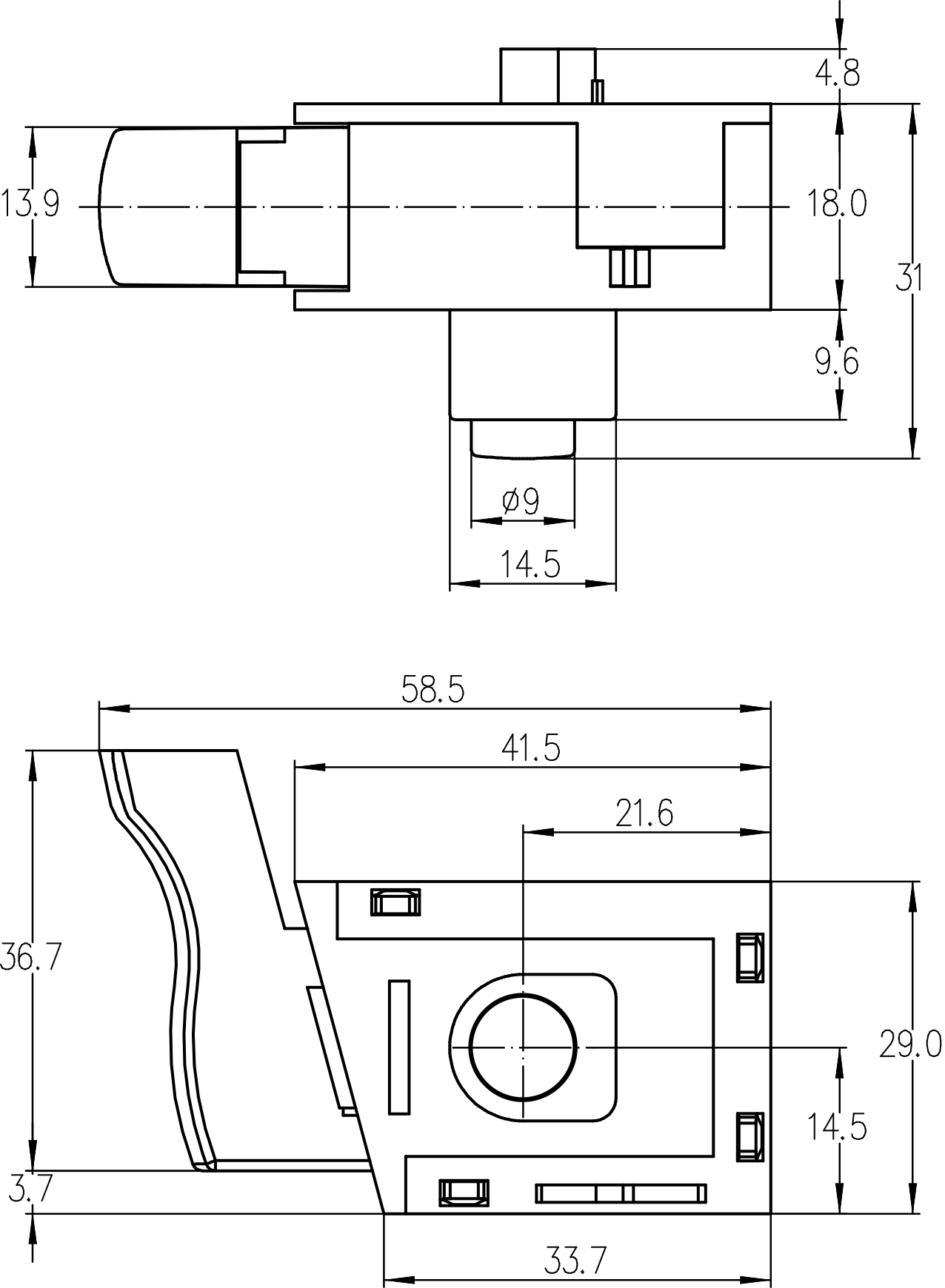

JB06-10/1

JB06/JB08舊款電動工具專用開關

JB06/JB08 series Switches Special for Previous Type Power-tools

產品描述Product description

◆JB06系列是一專用的舊款機型開關，集成防塵功能，適用于手持式電動工具，如：電鉆、電錘、往復鋸、馬刀鋸、曲線鋸、角磨機、攪拌器、砂光機等。
◆JB06 series are one special type switch for previous type power-tools, integrated dustproof, for used in portable power-tools, such as Electric Drills, Rotary Hammers, Reciprocating Saws, Sanders, Sabre Saws, Jig Saws, Electric Mixers, Angle Grinders, etc.

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V60A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

◆輸入端 Inpust side:
→接線柱端子 Pillar terminals φ=3mm
◆輸出端 Output side:
→插入式端子可插入插片端子2.8×0.8mm
→Push-in terminals for plug-in terminals 2.8×0.8mm

電氣參數和認證 Electric Rating and Certification
