產品特征Features
◆可選帶以下功能或附件：
→信號通斷帶電位器輸出功能
→信號通斷帶正反轉信號輸出和電位器輸出功能
→信號剎車
→帶軟膠扳機
◆ Optional with the function or accessories as follows:
→Signal On-off version with linear potentiometer
→Signal On-off version with Reversing and linear potentiometer
→Signal Brake
→Trigger covered with rubber (overmolding)
技術數(shù)據Technical data
→機械耐久壽命 Mechanical life endurance
≥5E4
→電氣耐久壽命 Electrical life endurance
≥1E4
→最大電流 Max.current at 42Vd.c
0.1A
→接觸電阻 Contact resistance
≤30m Ohm
→絕緣電阻 Insulation resistance
≥7M Ohm
→基本介電強度 Dielectric strength of function
500V
→加強介電強度 Dielectric strength of reinforced
500V
→環(huán)境溫度 Ambient temperature
0°C~55°C
→阻燃等級 Flammability
UL 94V-0
→防護等級 Protection type
IP40
◆開關內部電子部分在相應使用中一并做過相關測試，本開關適合做二類器具開關使用.
◆The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.

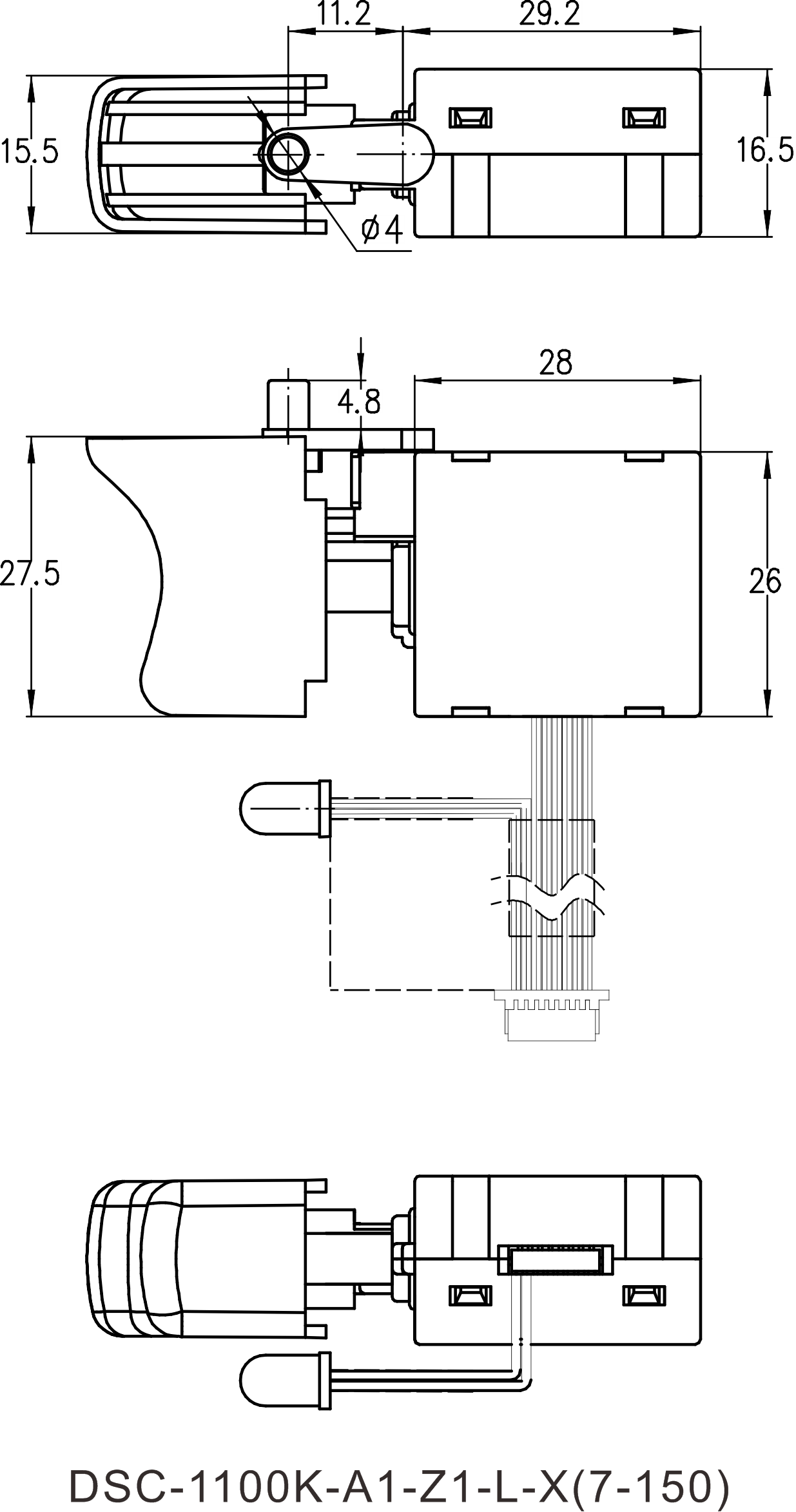

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→導線端子 Wire terminal
→帶插頭導線端子 Wire terminal with Plug
★本產品榮獲實用新型專利，專利號：ZL202121940125.4
★Utility Model patented with the no. is ZL202121940125.4
