產品描述Product description
◆FA2-5D系列是一款專用型的按鈕開關，集成防塵功能，應用于各類手持式電動工具，如：125和150角向磨光機、拋光機等。
◆FA2- 5D series are special type Push-button switch, integrated dustproof, for used in portable power-tools such as 125mm and 150mm Angle Grinders, Polishers Grinders, etc.
產品特征Features
◆可選帶以下附件 Optional with the accessories as follows:
→濾波電容(電容值由客戶選定，一般為0.22μF或0.33μF)
→Suppression capacitor (commonly 0.22 or 0.33μF)
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V60A
→最大沖擊電流 Max. Inrush current at 127V90A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP50
→適用于II類防護器具 Suitable for appliances of protection class II

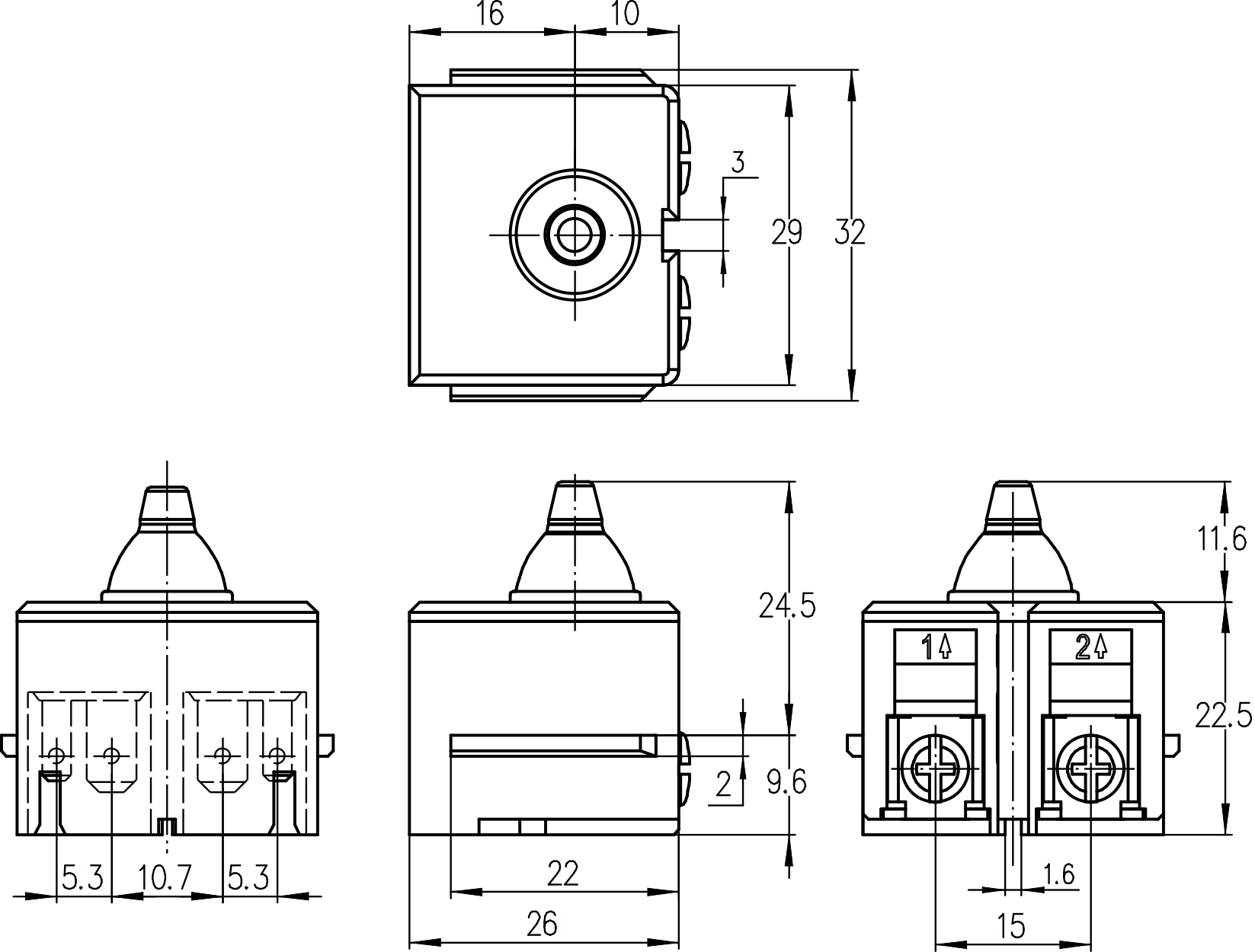

端子類型Terminals
◆輸入端 Input side:
→螺釘端子 Screw terminals M3.5
◆輸出端 Output side:
→插片端子 Plug-in terminals 4.8×0.8mm
→電容插片端子 Plug-in terminals for capacitor 2.8×0.8mm
電氣參數和認證 Electric Rating and Certification
