產品描述Product description
◆FA7-6F系列是一款專用型的按鈕開關，應用于各類臺式電動工具和家用電器，如：臺鋸、臺式砂輪機、臺式砂帶機、真空吸塵器、干濕兩用吸塵器、高壓清洗機等。
◆FA7-6F series are special type push-button switch, commonly for used in bench-top power-tools and home appliances such as Table Saws, Bench Grinders, Belt Sanders, Vacuum Cleaners, Day and Wet Vacuum Cleaners, Electric High Pressure Washers,etc.
產品特征Features
◆可選帶以下功能 Optional with following function:
→雙極常開 DPNO
→雙極常開帶自鎖 DPNO with latching
→帶防護罩→帶防護罩可實現防塵防水功能（和器具安裝后）

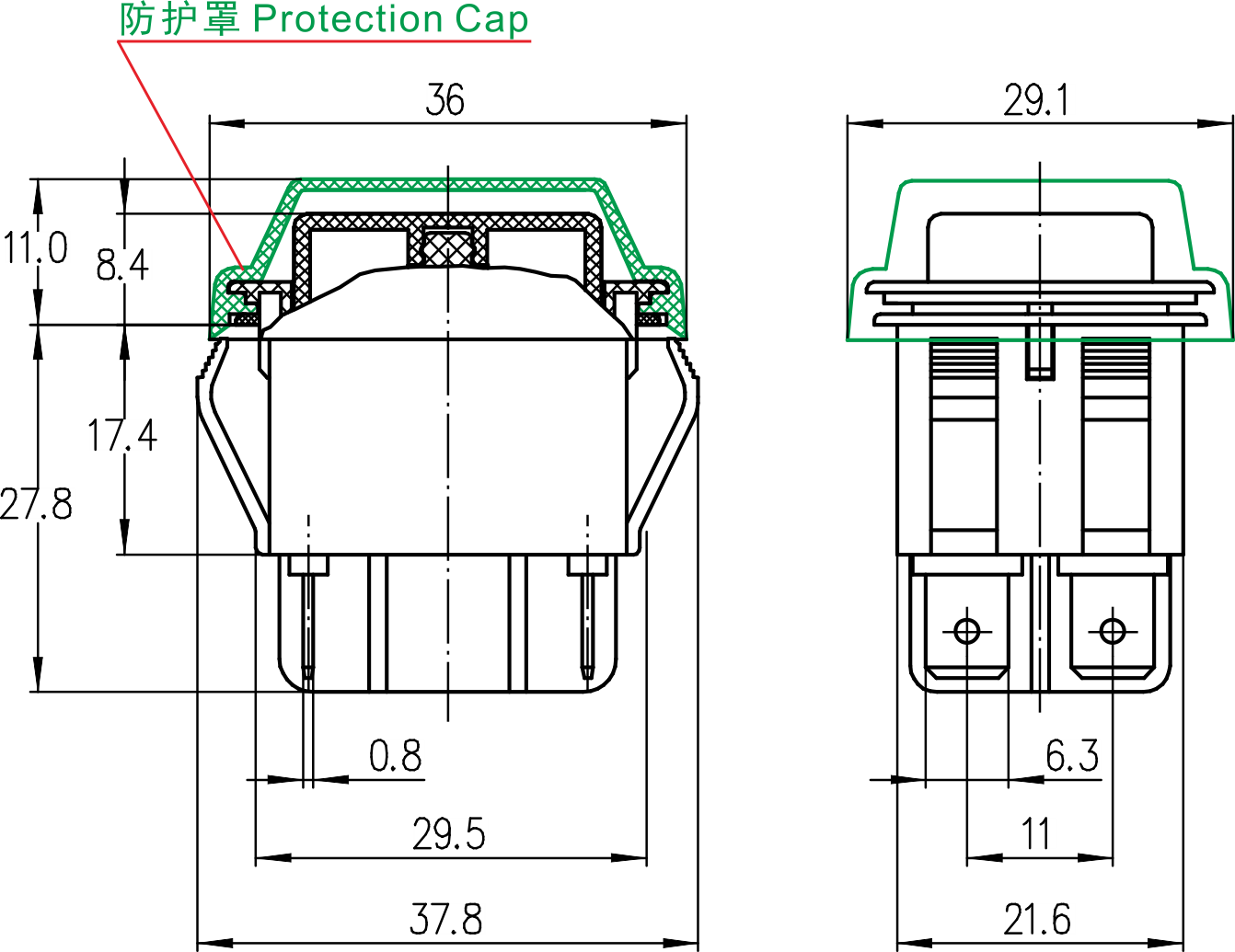

→Optional with Protection Cap for dustproof and waterproof (After installed with the appliances)
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V84A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~85°C
→操動件溫度 Actuator temperature0°C~55C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II
端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→插片端子 Plug-in terminals 6.3×0.8mm
→插片端子 Plug-in terminals 4.8×0.8mm
→焊接端子 Solder terminals
→線路板焊接端子 PCB Solder terminals
電氣參數和認證 Electric Rating and Certification
