產品描述Product description
◆K1-6C系列是一款標準型的小型蹺板開關，也通稱船型開關、波形開關等，可選帶防護罩實現防塵和防水功能，用途極廣，廣泛應用于各類家用電器及辦公設備，如：臺燈、電扇、打印機、游戲機、電腦電源、有源音箱、飲水機等等。
◆K1-6C?series are one standard type rocker switch, optional with?Protection Cap?for?dustproof?and?waterproof, commonly for use in small Home appliances and office equipments, such as Reading Lamps Electric Fans, Printers, Game Players, Computer P ower-supplys, Power Sound Box, etc.
產品特征Features
◆可選帶以下功能 Optional with the function as follows:
→雙極單擲?DPST (Double Pole Single Throw)
→雙極雙擲?DPDT?(Double Pole Double Throw)
→雙極雙擲帶中間斷開 DPDT with Centre-off
→點動功能 Momentary act
◆可選帶以下附件 Optional with the accessories as follows:
→防護罩 Protection Cap
→焊接帶端子導線 Soldering with leads and terminals
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V48A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~85°C
→操動件溫度Actuator temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

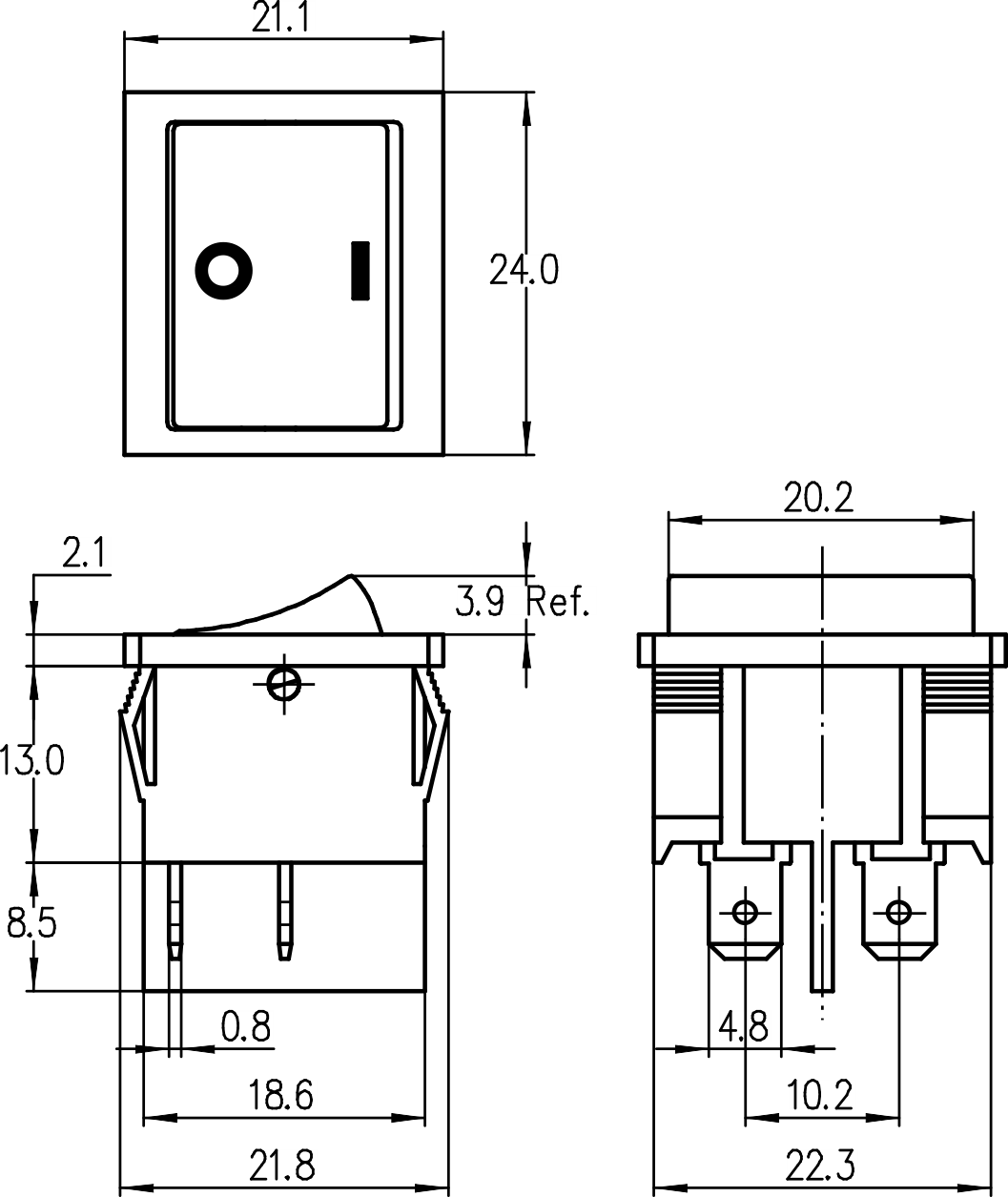

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→插片端子 Plug-in terminals 4.8×0.8mm
→焊接端子 Solder terminals 4.8×0.8mm
電氣參數和認證 Electric Rating and Certification
